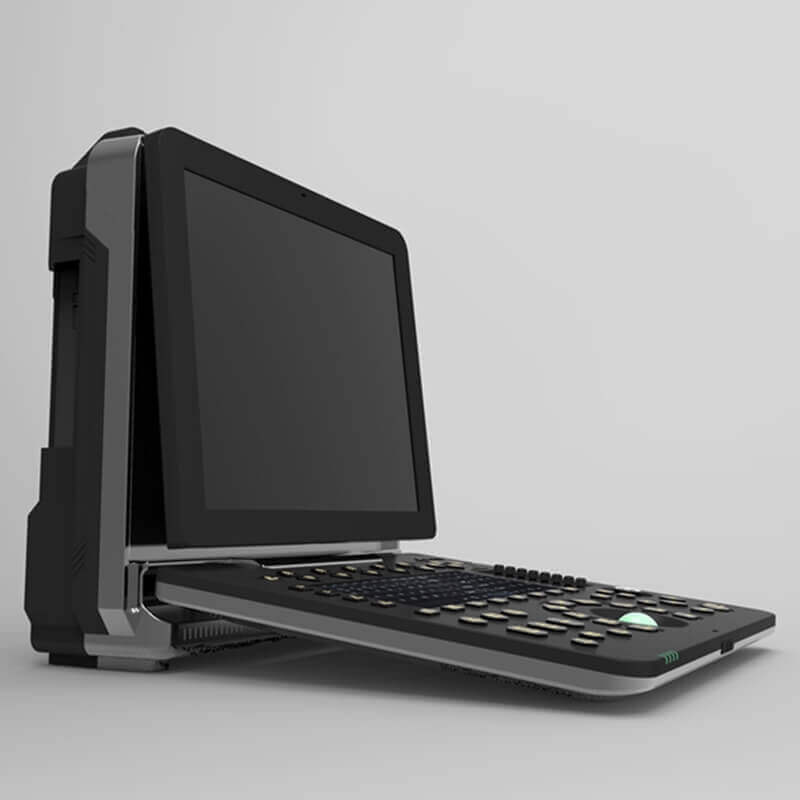

Portable Veterinary Ultrasound Scanner for Sale PM-V6P

Overview

1) Full-Digital 2D grayscale imaging/Full-Digital Tissue Harmonic Imaging (THI)

3) Color Doppler blood flow imaging/ Directional color energy Doppler imaging

5) Pulse Wave Doppler imaging (PW)/Continuous Wave Doppler imaging (CW)

7) Space compound imaging/Trapezoidal imaging

9) 2D, color, Doppler mode automatic optimization adjustment technology

10) Real-time triple synchronizing/Real-time 3D imaging

11) Adaptive speckle suppression technology

13) Intelligent picture-in-picture imaging mode (PIP)

14) Monitor: 15inch high-resolution medical LCD monitor, adjustable angle

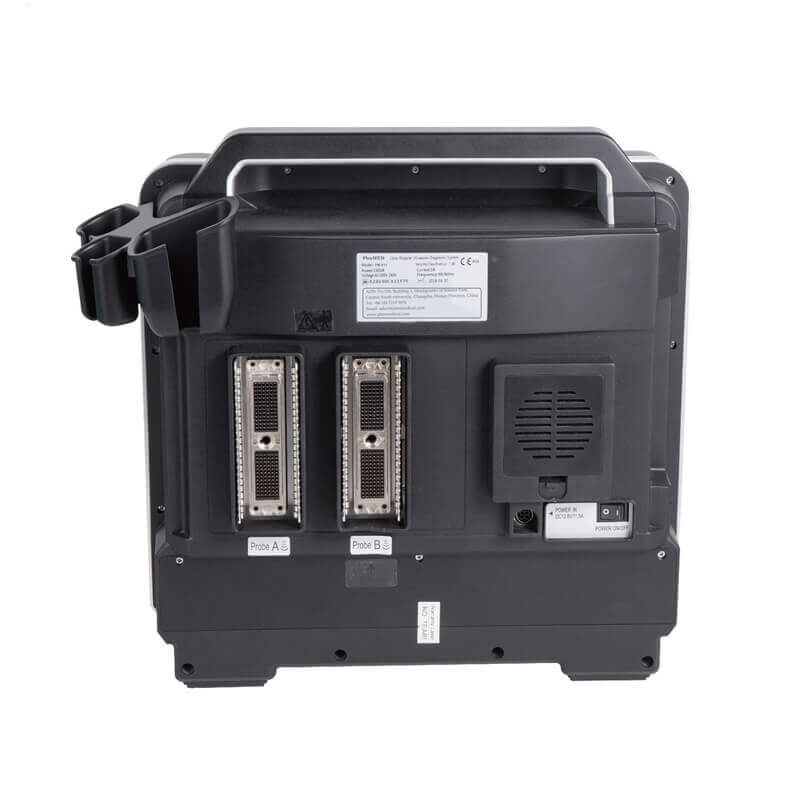

15) Probe connectors: ≥2 active

Get a Quick Quote

Product Details Specifications Optional Devices Application Contact Us

More details information about portable veterinary ultrasound machine PM-V6P

Mode of display

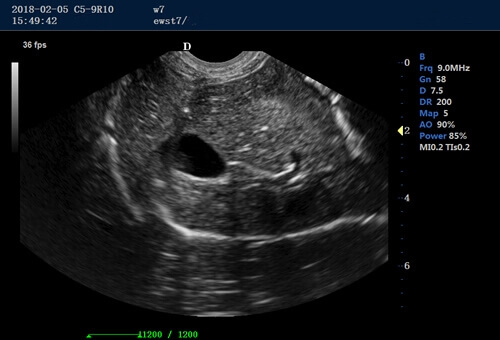

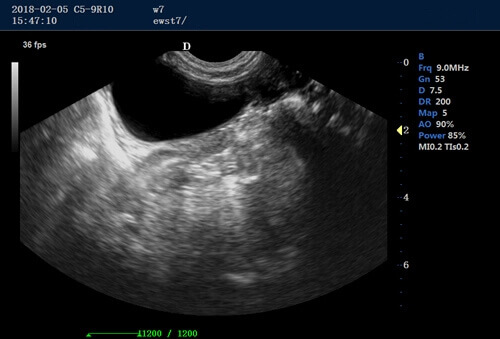

2D imaging mode

1.1 Gray scale: 256

1.2 Gray Map: ≥16 level, visible and adjustable

1.3 Dynamic range: 20-280db (visible and adjustable)

1.4 Resolution: Horizontal≤1mm; Vertical≤0.5mm

1.5 Under B mode, focus number: 1-6, focus position continuously adjustable

1.6 STC gain control ≥8 segments

1.7 THI: harmonic frequency ≥2 segments

1.8 Line density: ≥256, visible and adjustable

1.9 Preset: ≥40 kinds, users can customize the inspection conditions for the optimized images of different organs

1.10 Max scanning depth: ≥31cm, visible and adjustable

1.11 Scanning angle: 50°-100°, visible and adjustable

1.12 Cine loop ≥4800 frames

1.13 Adaptive speckle suppression: 0-100 adjustable

1.14 Amplification: overall amplification, local amplification, M-type amplification (do M-type sampling amplification under both scanning or freeze state)

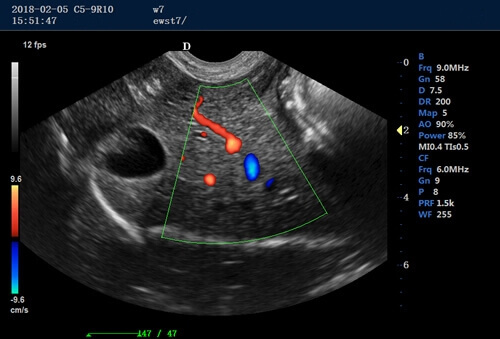

Color blood flow imaging mode:

2.1 Color gain: adjustable

2.2 Color frequency: ≥3 kinds, visible and adjustable

2.3 Sampling frame: size and position adjustable

2.4 Color blood flow steer: ≥3 angles adjustable

2.5 Color map: 1—9 level

2.6 Color persist: 0—6 level

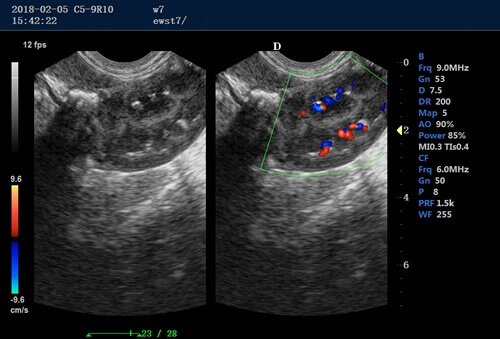

2.7 B/C split display: available

3.Energy Doppler:

3.1 Directional Energy Doppler: available

3.2 Energy Doppler Gain: adjustable

3.3 B/C split display: available

3.4 Energy chart: 1—8 level

3.5 Energy persist: 0—6 level

4.Doppler mode:

4.1 With Pulse Wave Doppler (PW) and Continuous Wave Doppler (CW)

4.2 PW blood flow measurement speed: min speed: ≤0.2 cm/s, max speed: ≥1500cm/s

4.3 CW blood flow measurement speed: min speed: ≤0.6cm /s, max speed: ≥7000cm/s

4.4 Sampling volume size: 1mm-20mm, visible and adjustable

4.5 Sampling angle correction: -80—80 °

4.6 Spectral Gain: adjustable

4.7 PW Doppler frequency: ≥3 kinds, CW Doppler frequency: ≥15 kinds, visible and adjustable

4.8 Real-time automatic Doppler envelope mapping and automatic measurement and analysis

4.9 Baseline: Zero shift adjustable

Measurement and analysis:

General measurement
OB&GYN measurement
Cardiac function measurement and analysis
Doppler blood flow measurement and analysis
Peripheral blood vessel measurement and analysis
Urology measurement and analysis
Orthopedic measurement and analysis
Automatic Doppler flow measurement and analysis
Users can programme protocol numbers, formulas and tables

Packaging

packaging size: 76.5*50.5*64.5cm

N.W.: 8.5KGS
G.W.: 26KGS

Machine size: 41.6 ×19.3 ×38.6cm (L×W×H).

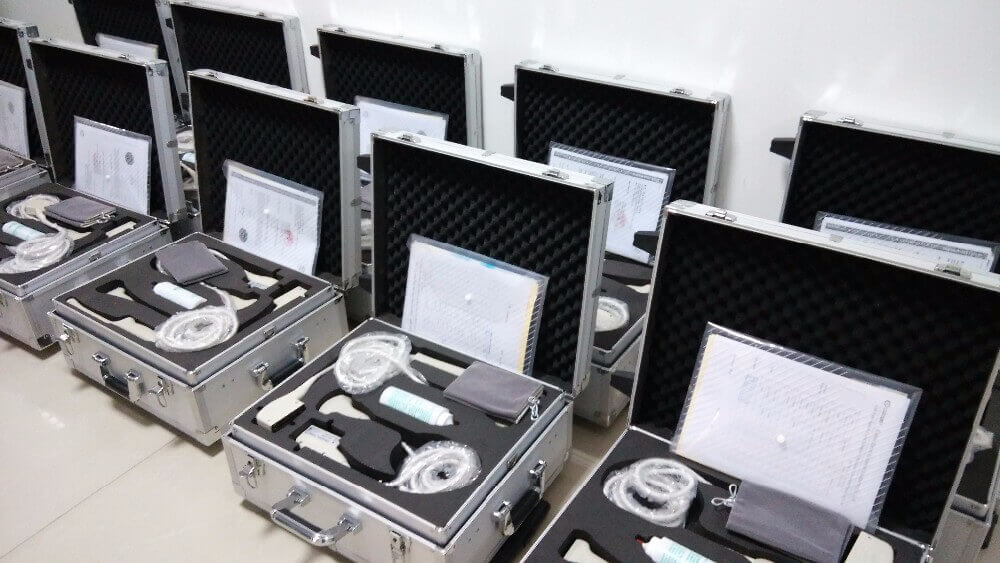

Package: two –layer aluminum plastic pull-rod box, Omni directional wheel (standard export carton box with foam)

Multiple probe configuration:

1.1 Convex probe frequency: 2.0-5.0MHZ (multi-frequency, Harmonic frequency≥5), probe scanning angle 20°~85°, visible and adjustable.

1.2 Linear probe frequency: 6.0-12.0MHZ (multi-frequency, harmonic frequency ≥4), probe scanning with trapezoidal imaging technology and 2D beam deflection technology

1.3 Trans-vaginal probe frequency: 5.0-9.0MHZ (multi-frequency, harmonic frequency ≥2), probe scanning angle 20°~160°, visible and adjustable.

1.4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments multi-frequency.

1.5 Phased array probe frequency: 2.5-4.0MHz, 3 segments multi-frequency.

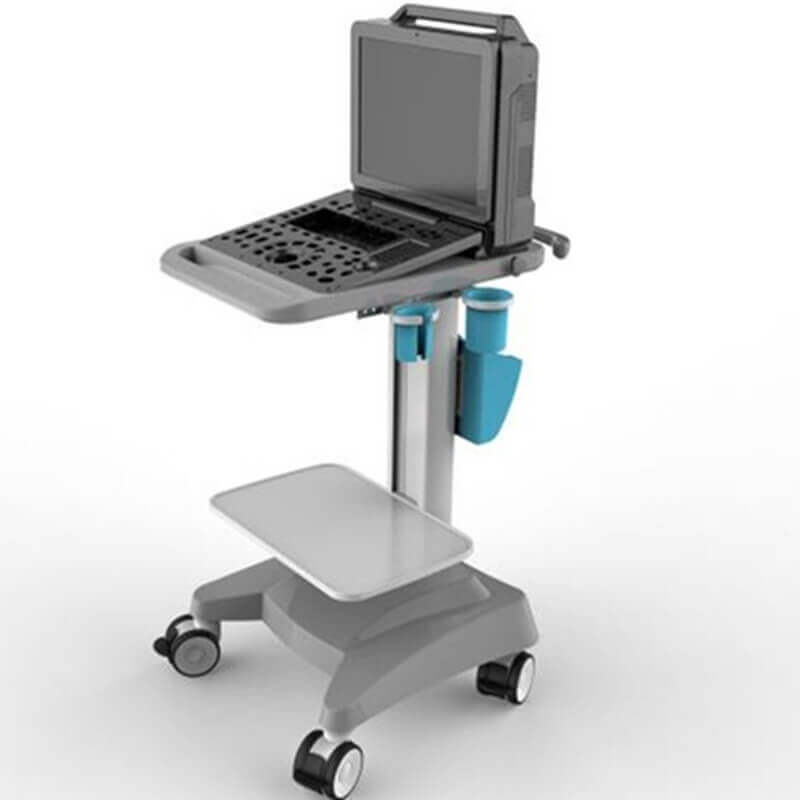

Trolley (Option)

1 - Portable Veterinary Ultrasound Scanner for Sale PM-V6P 2 - Portable Veterinary Ultrasound Scanner for Sale PM-V6P 3 - Portable Veterinary Ultrasound Scanner for Sale PM-V6P

Application:

Portable veterinary ultrasound machine PM-V6P can be used for large, middle and small animal’s liver, gallbladder, spleen, kidney, bladder, uterus, ovary, and other tissues and organs 1nspect1on and diagnosis of lesions
