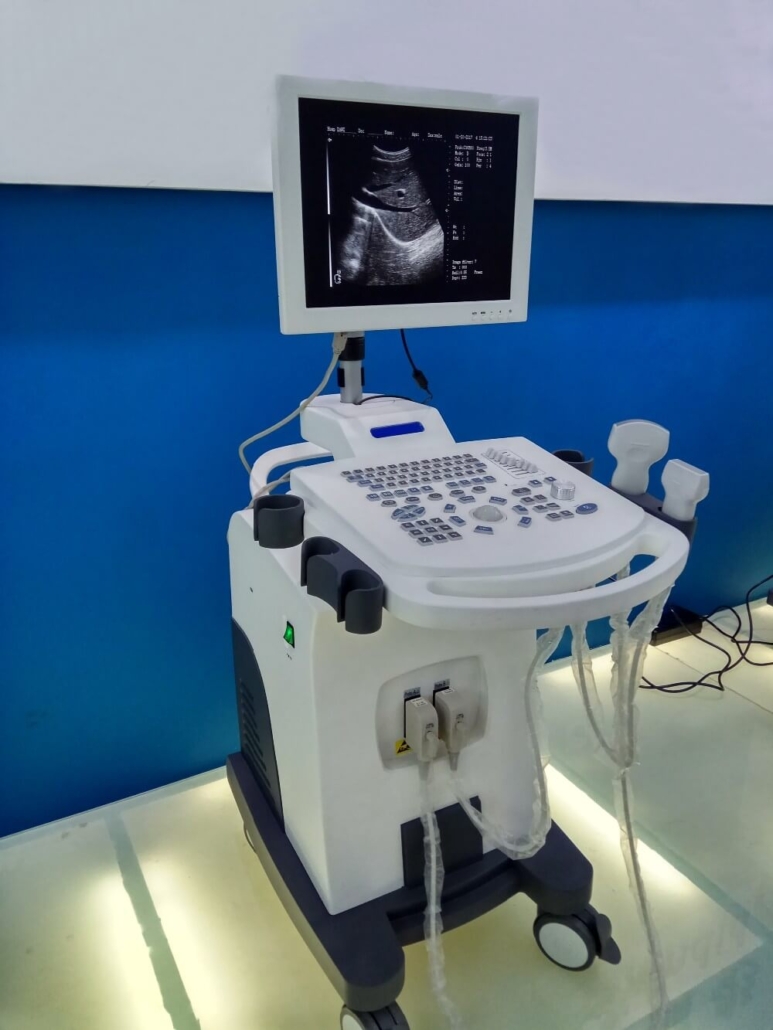

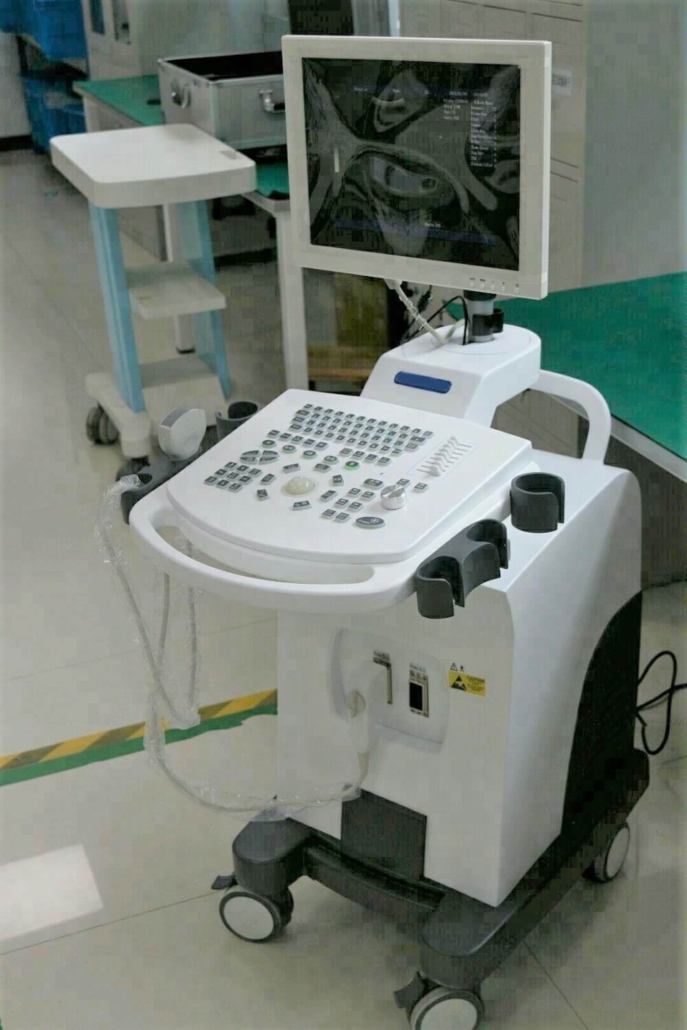

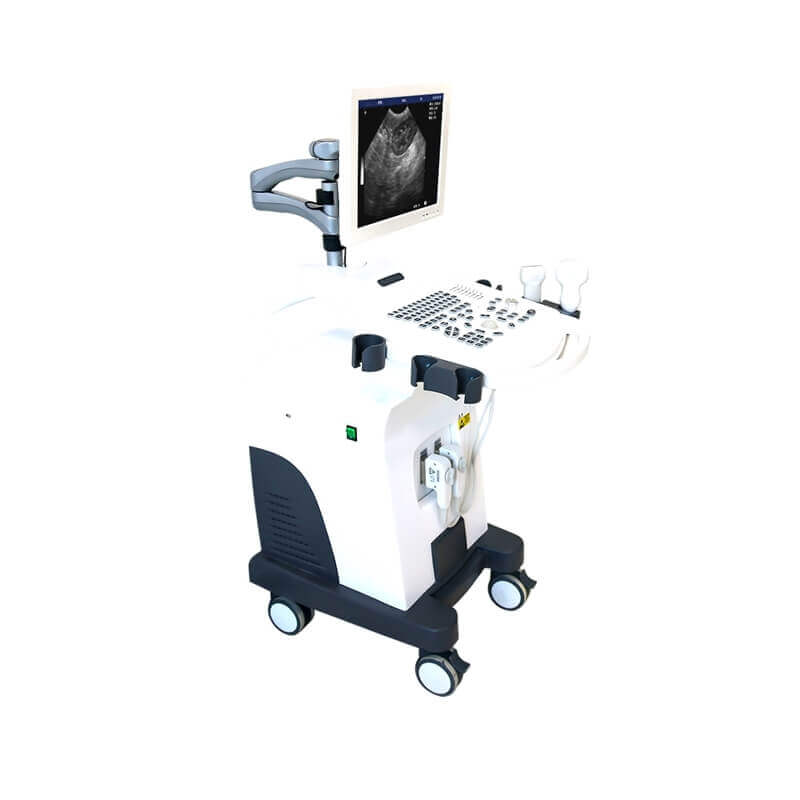

Dog Ultrasound Machine Trolley for Pregnancy Checking PM-V15T

As one of the most professional animal diagnostic ultrasound manufacturers in China, our small animal diagnostic ultrasound machine PM-V6T can be used for canine, feline, equine, bovine, ovine, and other more various veterinary clinical abdomen, chest, heart, tendon, small organs, the eye, genital examination.

Overview

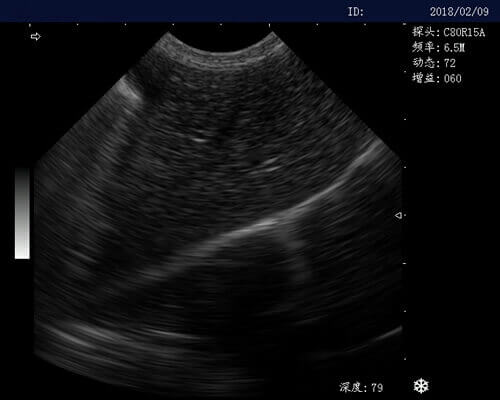

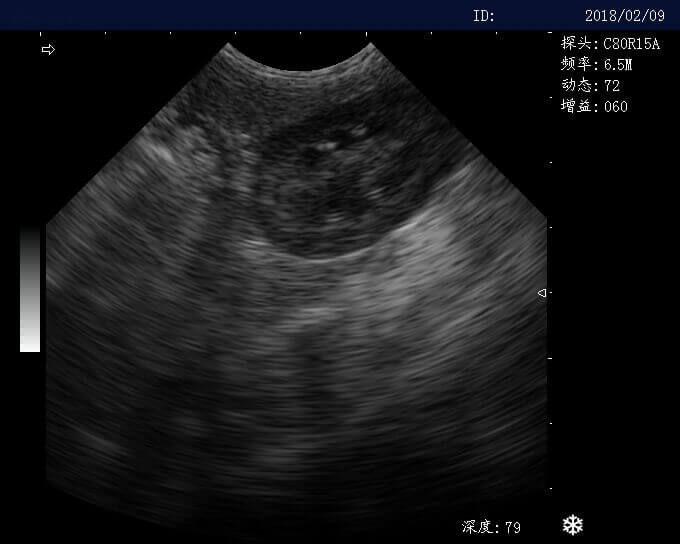

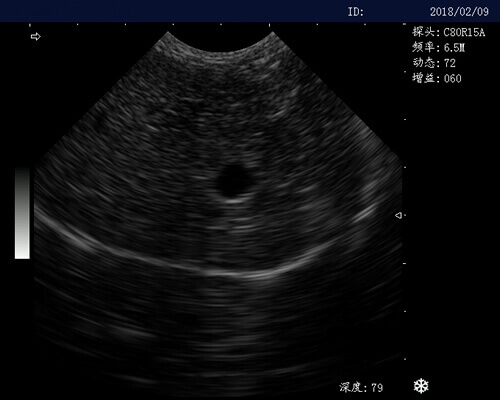

2D Image

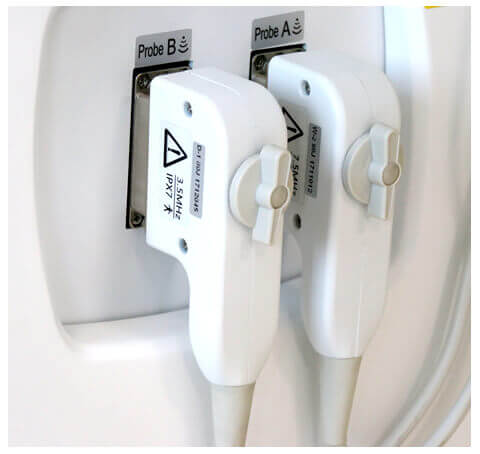

2 Probe connectors
Net weight 26.6KGS, gross weight: 40 6KGS

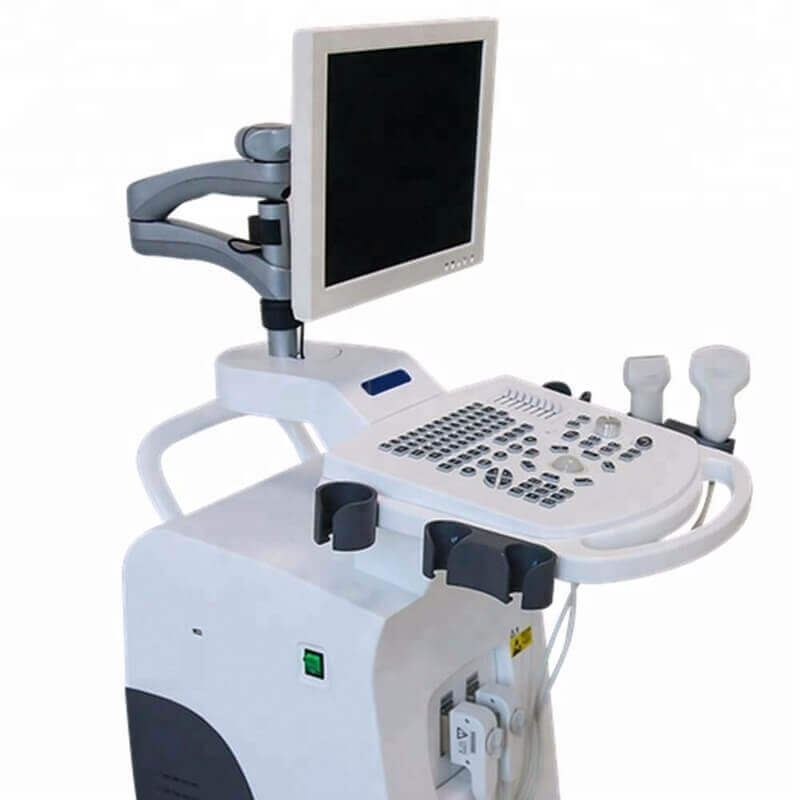

15 Inch LED medical monitor, angle view ad」ustment more flexible
Drop-resistant soft rubber body, display plus explosion-proof glass
16 kinds of display modes, more accurate diagnosis of lesions. X0.8, X1.0 can enhancethe depth of the display
Multi-beam forming technology this technology can multiply receive and process scanning lines of images from each element, which can largely increase the frame rate

Get a Quick Quote

Product Details Specifications Application Contact Us

More details information about Dog Ultrasound Machine Trolley for Pregnancy Checking PM-V15T

Technical Specification:

Scanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe, trans-vaginal probe, trans-rectal probe, high frequency linear probe
Monitor: 15inch high resolution LED

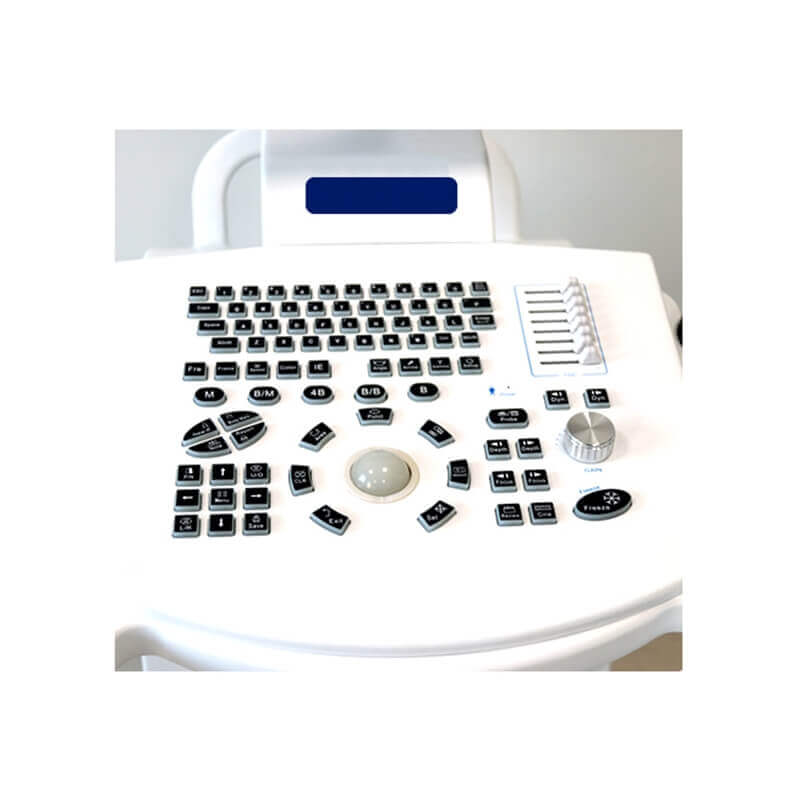

Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode: B, B+B, B+M, M, 4B
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5 (16 kinds)
Body marks: 30
Probe interface: 2
Pseudo color: 7
Image processing: up/ down, left / right, black / white conversion, edge enhancement, gamma correction, frame correlation, pseudo color processor (need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD, maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port.
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V, 50/60Hz

First-class digital imaging technology, clearer image:

Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligent 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
USB port: storable and readable

Flexible and convenient operating system:

15inch LED liquid crystal display, angle range is more flexible to adjust
Back-lit keyboard silicone gel, more comfortable and wearable, no trouble in using in the darkroom
Intelligent menu, man-machine dialogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate
USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop, image can display circularly and automatically

Probe

lconvex probe
ltrans-vaginal probe
ltrans-rectal probe
lhigh frequency linear probe

Application: Canine, feline, equine, bovine, ovine, and other more various veterinary clinical abdomen, chest, heart, tendon, small organs, the eye, genital examination.
